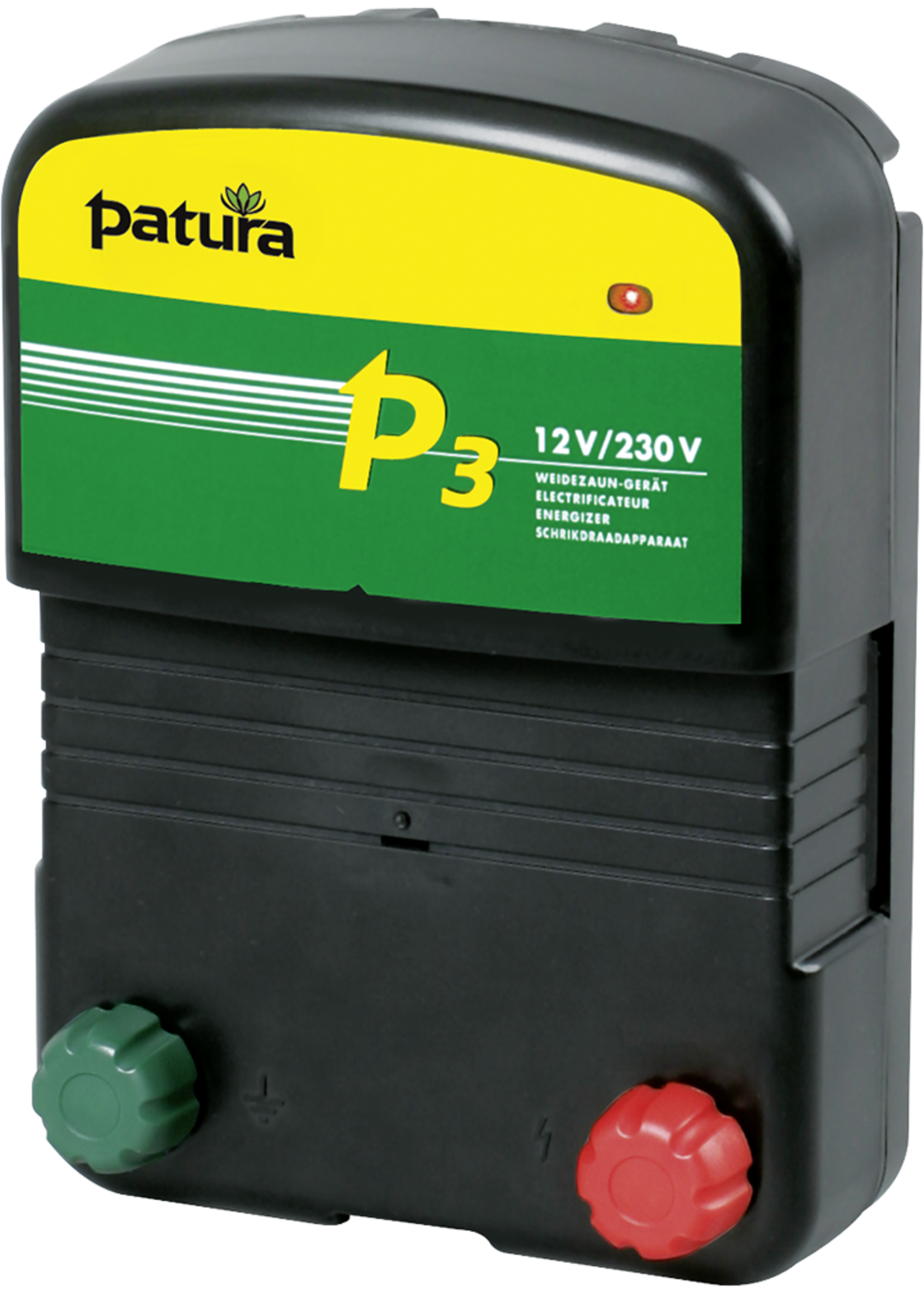

The PATURA combination device for grazing with vegetation for cattle and horses; almost empty protection; includes 230 V mains power supply and 12 V connection cable
Charging energy: 2.7 Joule

Ref. 147310
Model: P 3
Sales carton: (1 piece)
Charging energy (Joule): 2,7
Max. pulse energy: 2.0
No-load voltage (Volts): 11000
Voltage at 500 Ohm (Volts): 5900
Voltage at 100 ohms (volts): 2100
Current consumption at 230 V: 3
Max. current consumption at 12 V: 195
Max. fence length in km (multi-wire):

Without vegetation: 15
Light vegetation: 10
Normal vegetation: 5
Heavy vegetation: 1.5
Warranty: 3 years
Operation on 12 V battery: -
Operation on 230 V mains supply: -
Device control indication: -
Almost empty protection: -
Recommended battery (Ah min.): 50
Number of earth pins 1 mtr (min): 2
Recommended solar panel capacity: 25
